Product Information:
The ProMETAL U3050 Ultra concealed ceiling frame consists of main and cross runners connected using threaded rod locking clips. It meets high technical standards, ensuring safety for both construction projects and end users.
The ProMETAL U3050 Ultra frame system and accessories are manufactured using materials supplied by leading global steel corporations. The products are coated with aluminum-zinc alloy or pre-painted finishes and conform to the following quality standards: AS 1397, JIS G3302, JIS G3321, ASTM A792M, TCVN 7470.
Suitable for both interior and exterior ceilings.
The ProMETAL U3050 Ultra concealed ceiling system includes the following components:
| Name | Length (mm) | Thickness (mm) |

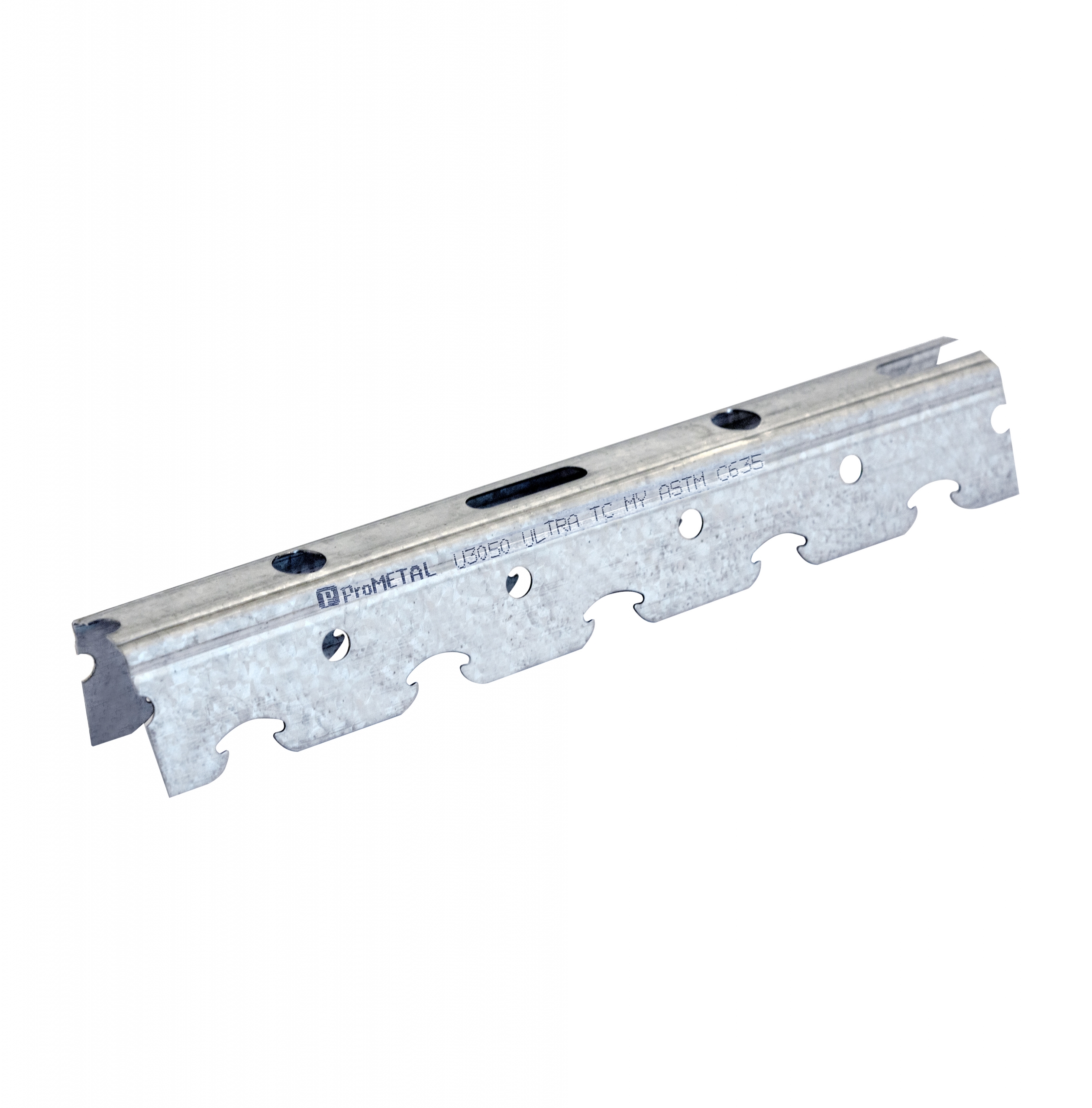

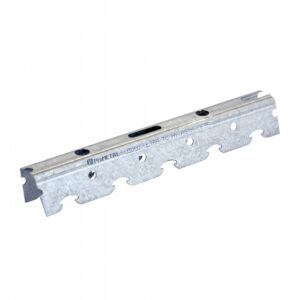

| Main T ProMETAL U3050 Ultra | 3660 ± 0.5 | 0.72 ± 0.02 |

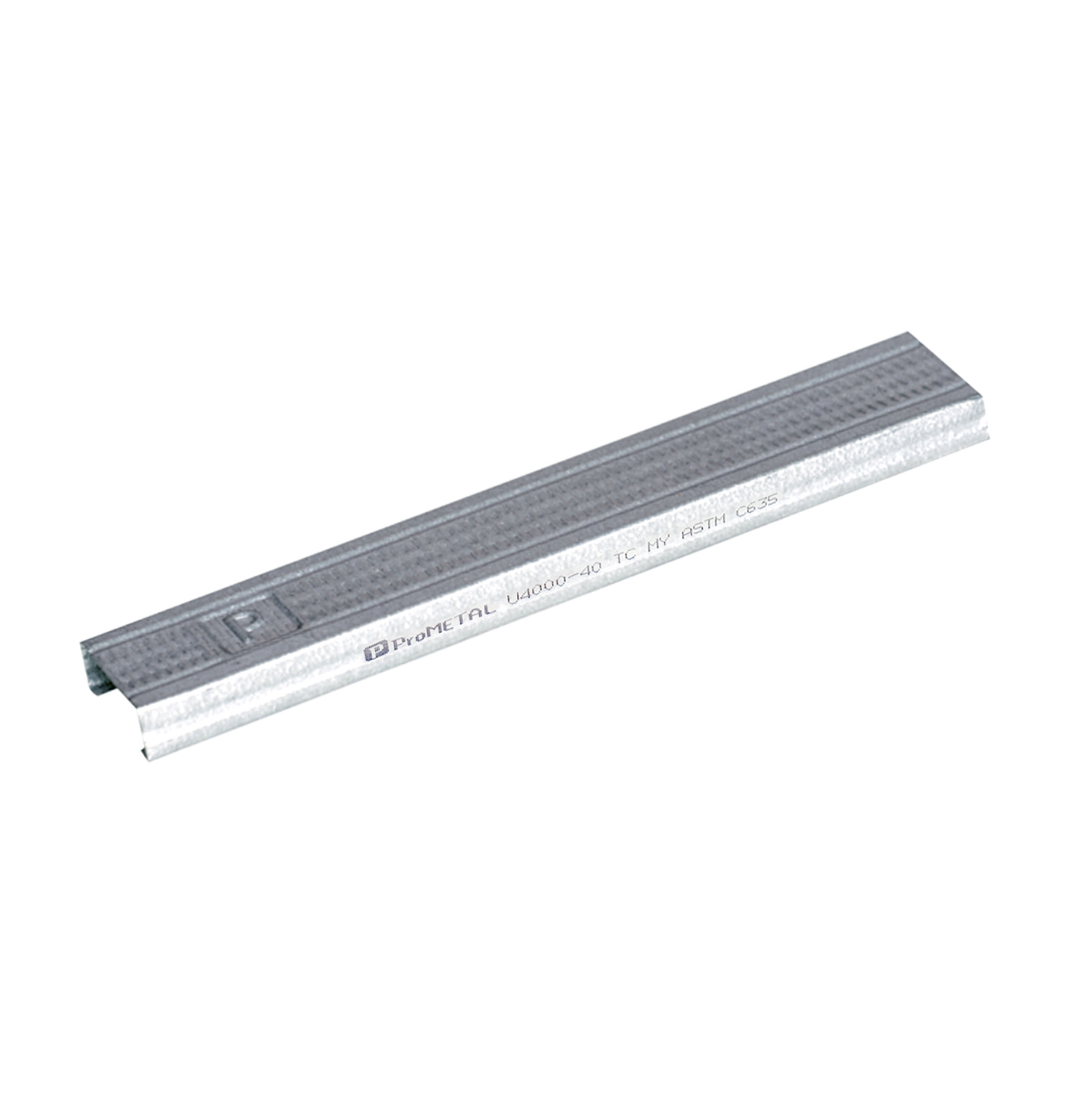

| Cross T ProMETAL U4000-40 | 4000 ± 0.5 | 0.4 ± 0.02 |
| Cross T ProMETAL V4000-32 | 4000 ± 0.5 | 0.32 ± 0.02 |

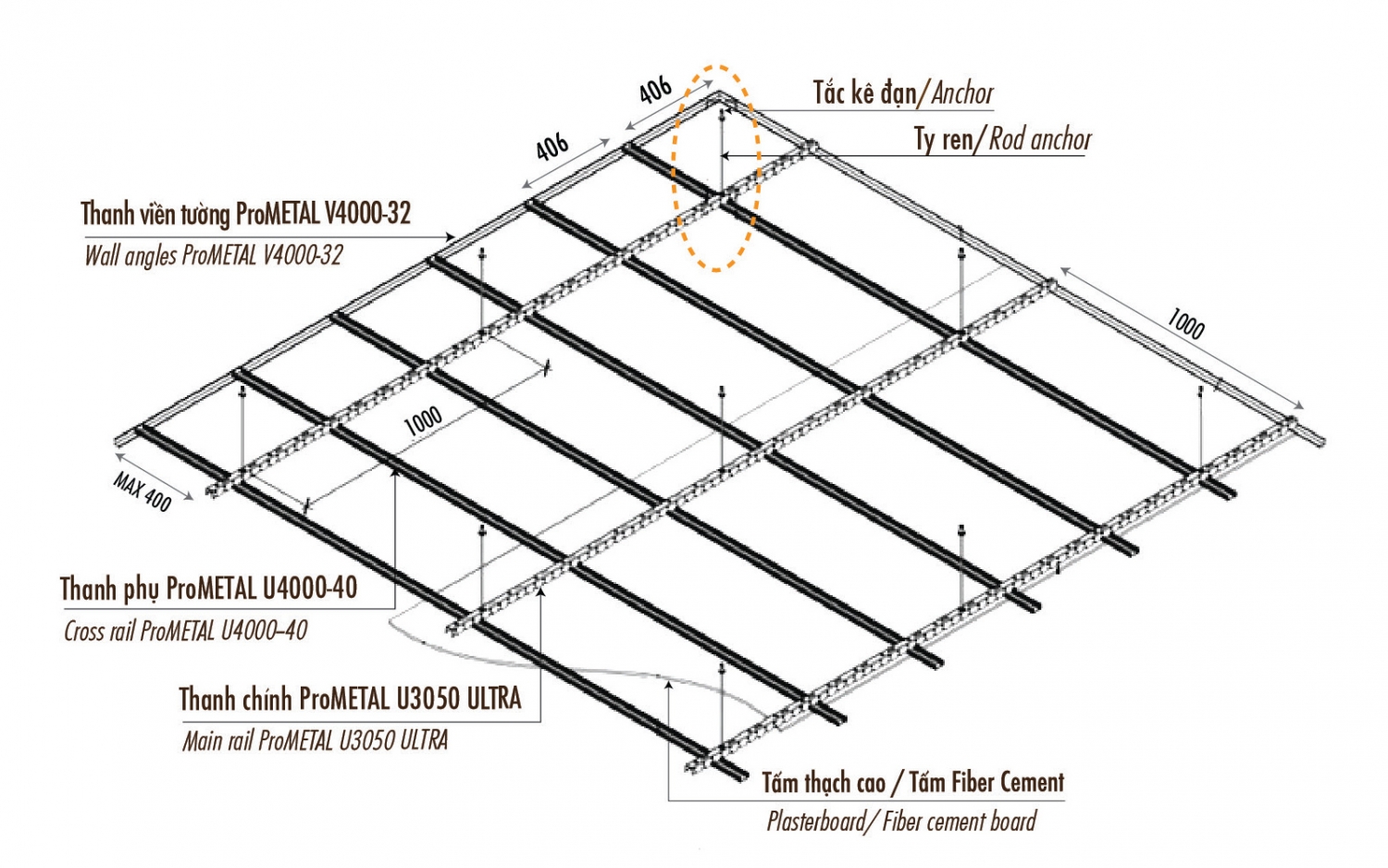

Ceiling System Composition

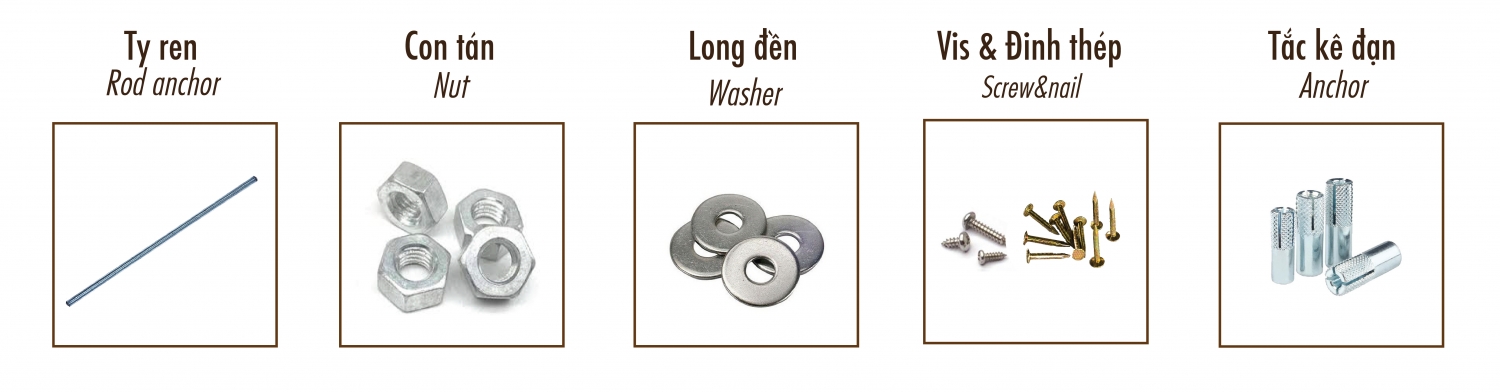

Accessories

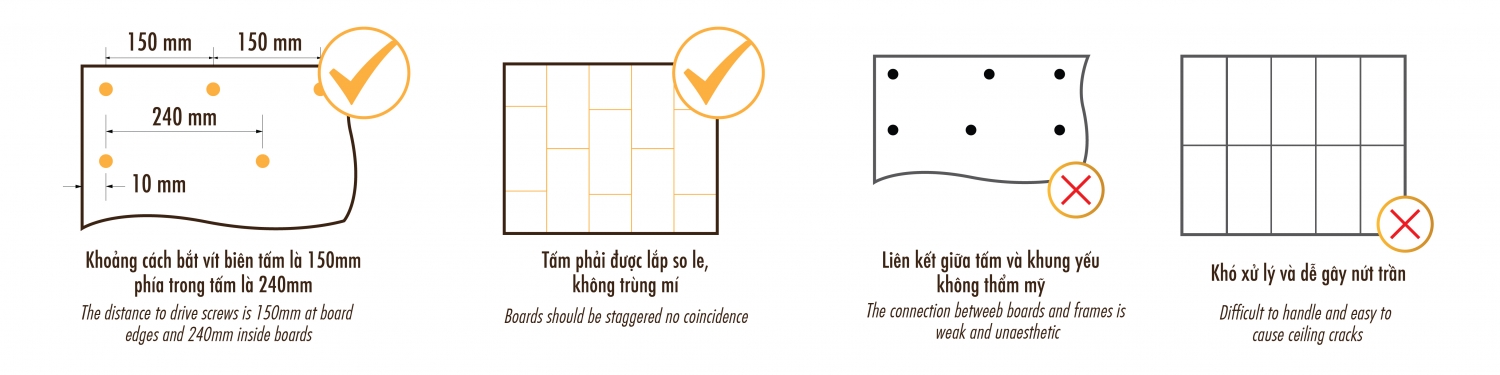

Key Points for Gypsum Ceiling Installation to Ensure Construction Quality
