ProMETAL Wall Angle

The ProMETAL partition frame is easy to assemble and dismantle, making it convenient for maintenance and repair of electromechanical systems inside the wall. It meets high technical standards and ensures safety for both buildings and users.

The ProMETAL partition frame system is manufactured using materials supplied by leading global steel corporations. Products are coated with aluminum-zinc alloy or pre-painted finishes and comply with the following quality standards:
AS 1397, JIS G3302, JIS G3321, ASTM A792M, TCVN 7470.

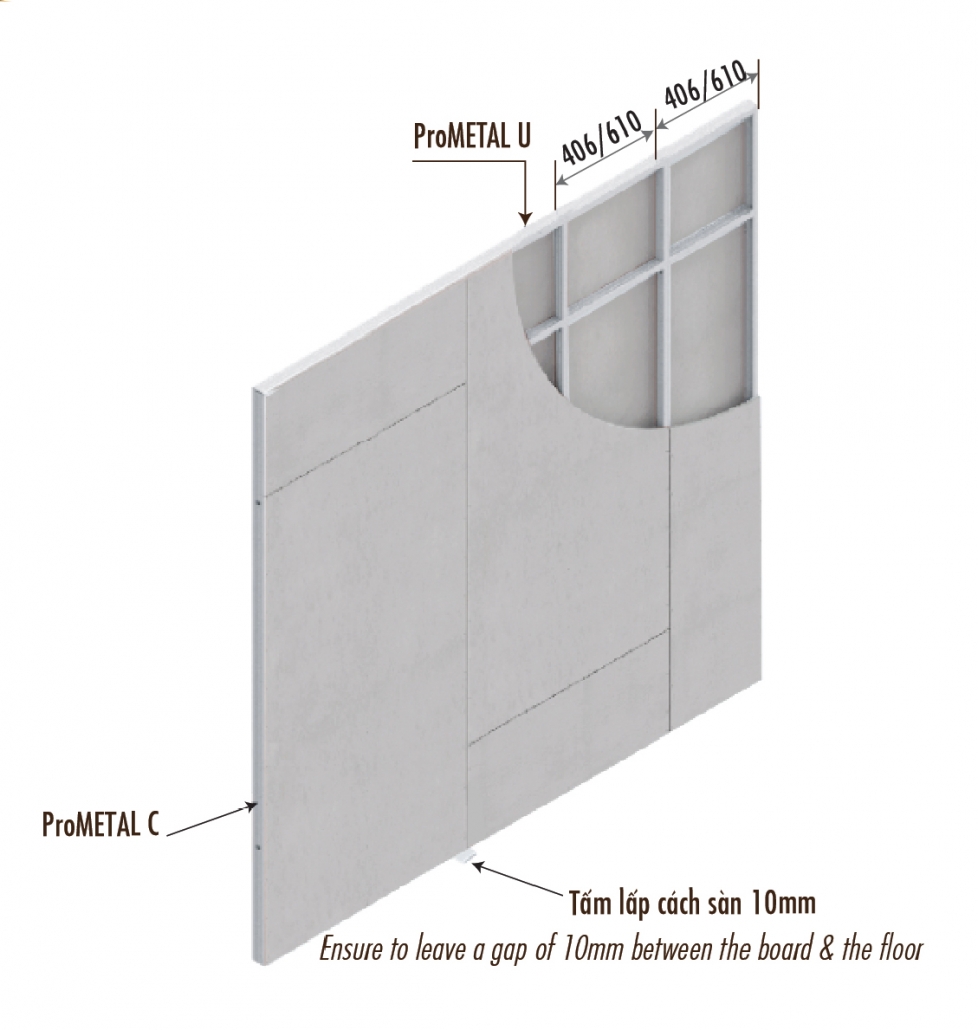

The ProMETAL partition frame system includes the following components:

ProMETAL
Name	Length (mm)	Width (mm)	Height (mm)	Thickness (mm)
Stud	2800 (+3 / -6)	51 ± 0.7	33 ± 0.5 &	0.50 ± 0.02
ProMETAL C51			35 ± 0.5
Stud	2800 (+3 / -6)	63 ± 0.7	33 ± 0.5 &	0.50 ± 0.02
ProMETAL C63			35 ± 0.5
Stud	2800 (+3 / -6)	75 ± 0.7	33 ± 0.5 &	0.50 ± 0.02
ProMETAL C75			35 ± 0.5
Stud	2800 (+3 / -6)	90 ± 0.7	33 ± 0.5 &	0.60 ± 0.02
ProMETAL C90			35 ± 0.5
Stud	2800 (+3 / -6)	100 ± 0.7	33 ± 0.5 &	0.60 ± 0.02
ProMETAL C100			35 ± 0.5
Stud	2800 (+3 / -6)	125 ± 0.7	33 ± 0.5 &	0.80 ± 0.02
ProMETAL C125			35 ± 0.5
Stud	2800 (+3 / -6)	150 ± 0.7	33 ± 0.5 &	0.80 ± 0.02
ProMETAL C150			35 ± 0.5

Name	Length (mm)	Width (mm)	Height (mm)	Thickness (mm)
Track	2800 (+10 / -6)	52 (+1 / -0)	30 ± 1.0	0.50 ± 0.02
ProMETAL U52
Track	2800 (+10 / -6)	64 (+1 / -0)	30 ± 1.0	0.50 ± 0.02
ProMETAL U64
Track	2800 (+10 / -6)	76 (+1 / -0)	30 ± 1.0	0.50 ± 0.02
ProMETAL U76
Track	2800 (+10 / -6)	92 (+1 / -0)	30 ± 1.0	0.60 ± 0.02
ProMETAL U92
Track	2800 (+10 / -6)	102 (+1 / -0)	32 ± 1.0	0.60 ± 0.02
ProMETAL U102
Track	2800 (+10 / -6)	127 (+1 / -0)	30 ± 1.0	0.80 ± 0.02
ProMETAL U127
Track	2800 (+10 / -6)	150 (+1 / -0)	30 ± 1.0	0.80 ± 0.02
ProMETAL U152
