Product Information:
The TEKO Partition Frame, developed by Hiệp Vĩnh Phú Joint Stock Company, is used in a wide range of projects—from residential houses to offices and commercial centers. It offers high quality, easy installation, and allows for convenient maintenance of internal electromechanical systems without affecting the structural integrity of the building. It significantly reduces construction time and helps lower investment costs.
The TEKO partition frame system is manufactured using materials supplied by leading global steel corporations. The products are coated with aluminum-zinc alloy or pre-painted finishes, and comply with the following quality standards:
AS 1397, JIS G3302, JIS G3321, ASTM A792M, TCVN 7470.

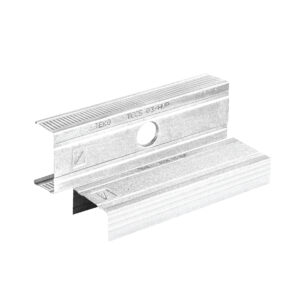

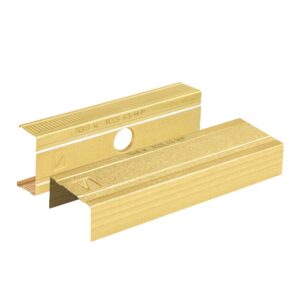

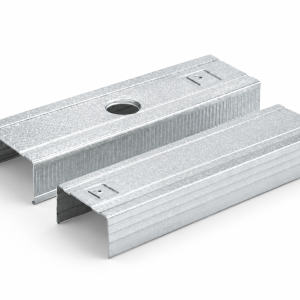

The TEKO partition frame system includes the following components:
| TEKO | ||||
| Name | Length (mm) | Width (mm) | Height (mm) | Thickness (mm) |

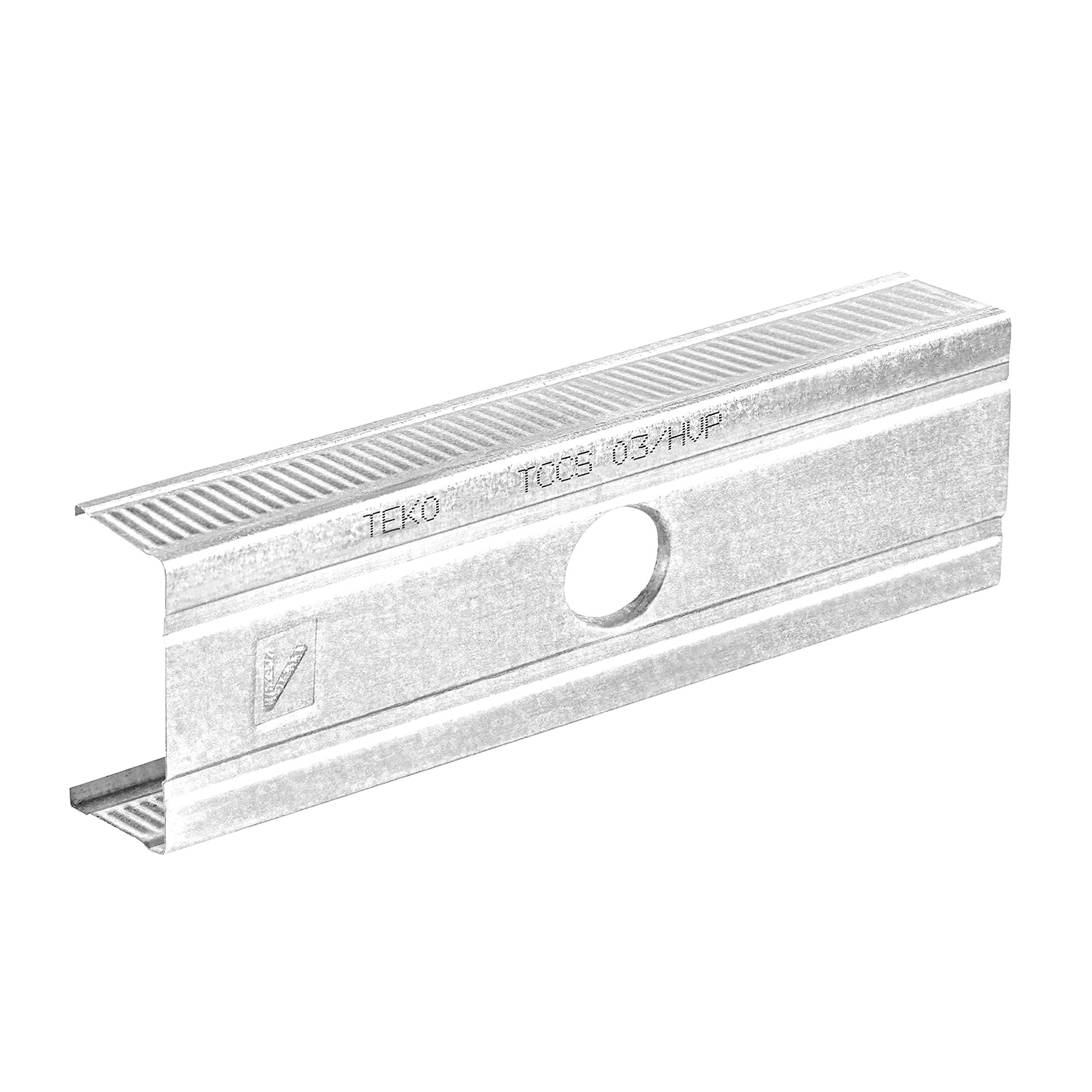

| Stud | 2800 (+3 / -6) | 51 ± 0.7 | 33 ± 0.5 & | 0.40 ± 0.02 |
| TEKO C51 | 35 ± 0.5 | |||
| Stud | 2800 (+3 / -6) | 63 ± 0.7 | 33 ± 0.5 & | 0.40 ± 0.02 |
| TEKO C63 | 35 ± 0.5 | |||
| Stud | 2800 (+3 / -6) | 75 ± 0.7 | 33 ± 0.5 & | 0.40 ± 0.02 |
| TEKO C75 | 35 ± 0.5 |

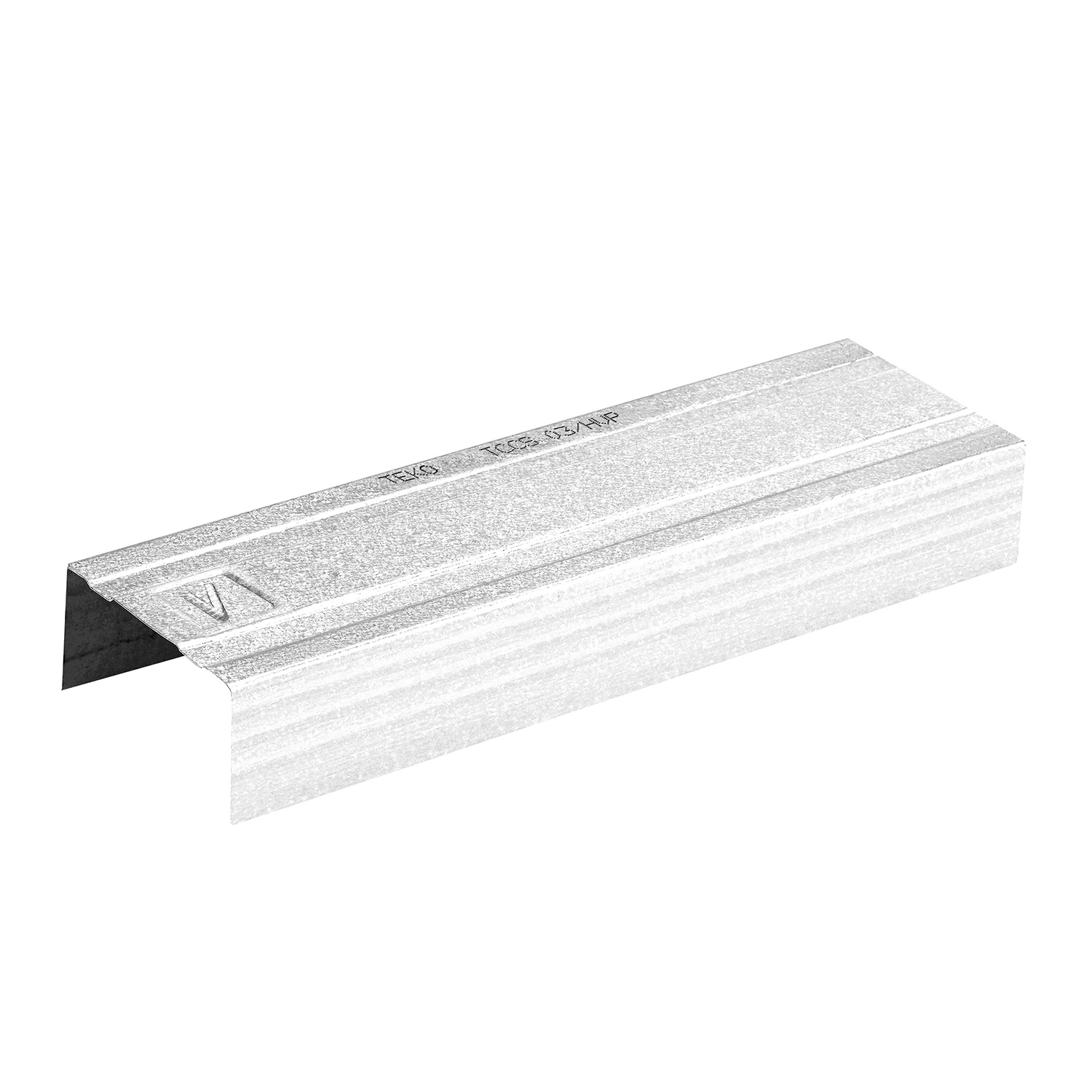

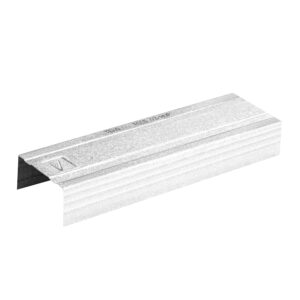

| Track | 2800 (+10 / -6) | 52 (+1 / -0) | 30 ± 1.0 | 0.40 ± 0.02 |
| TEKO U52 | ||||
| Track | 2800 (+10 / -6) | 64 (+1 / -0) | 30 ± 1.0 | 0.40 ± 0.02 |
| TEKO U64 | ||||
| Track | 2800 (+10 / -6) | 76 (+1 / -0) | 30 ± 1.0 | 0.40 ± 0.02 |
| TEKO U76 |

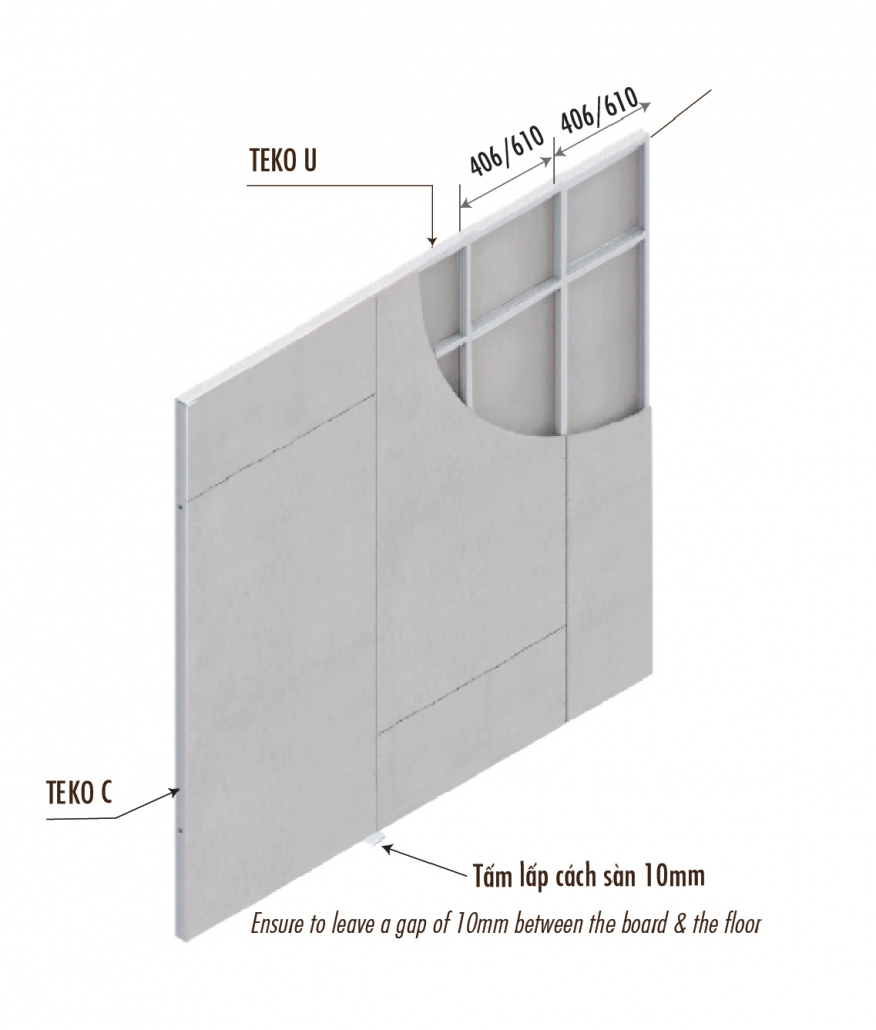

Ceiling System Composition

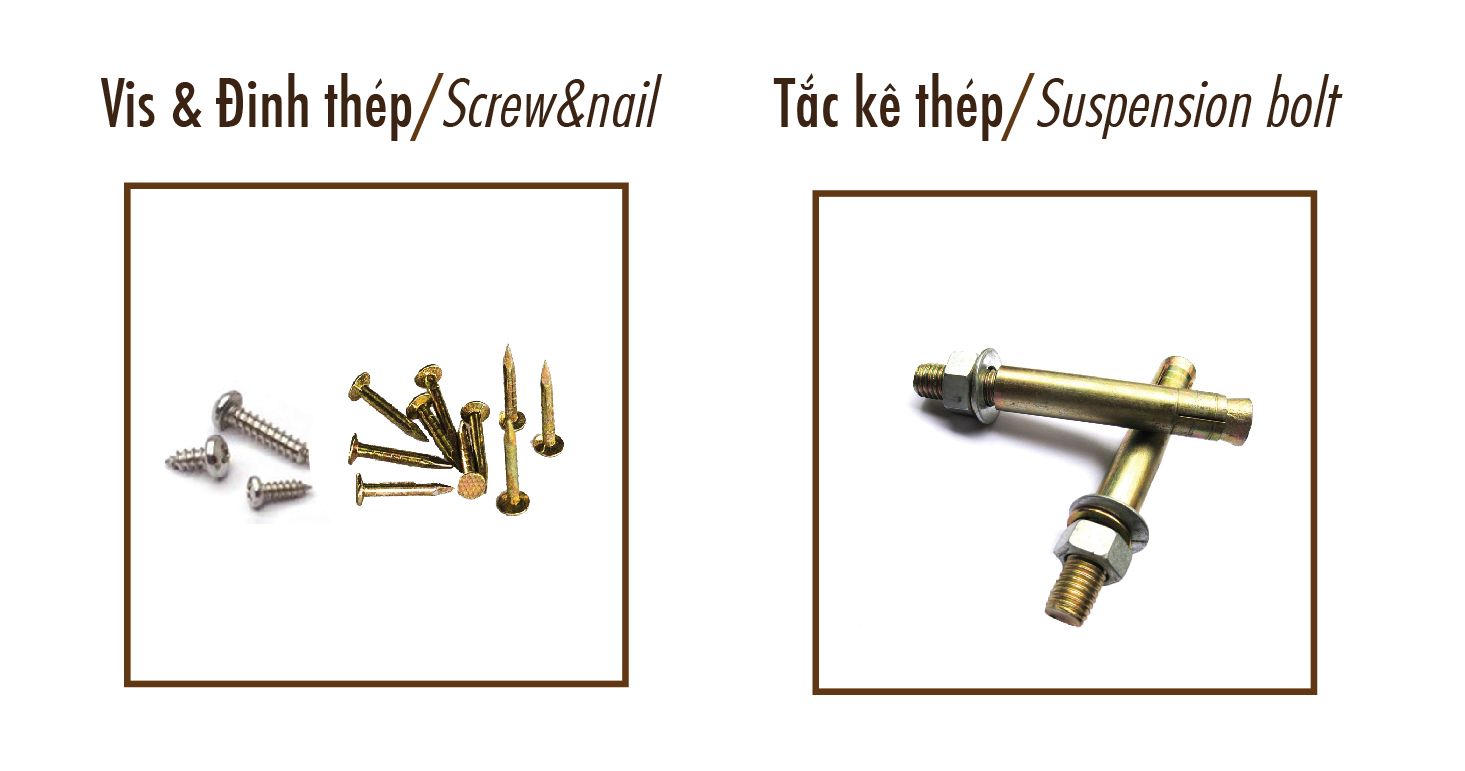

Accessories

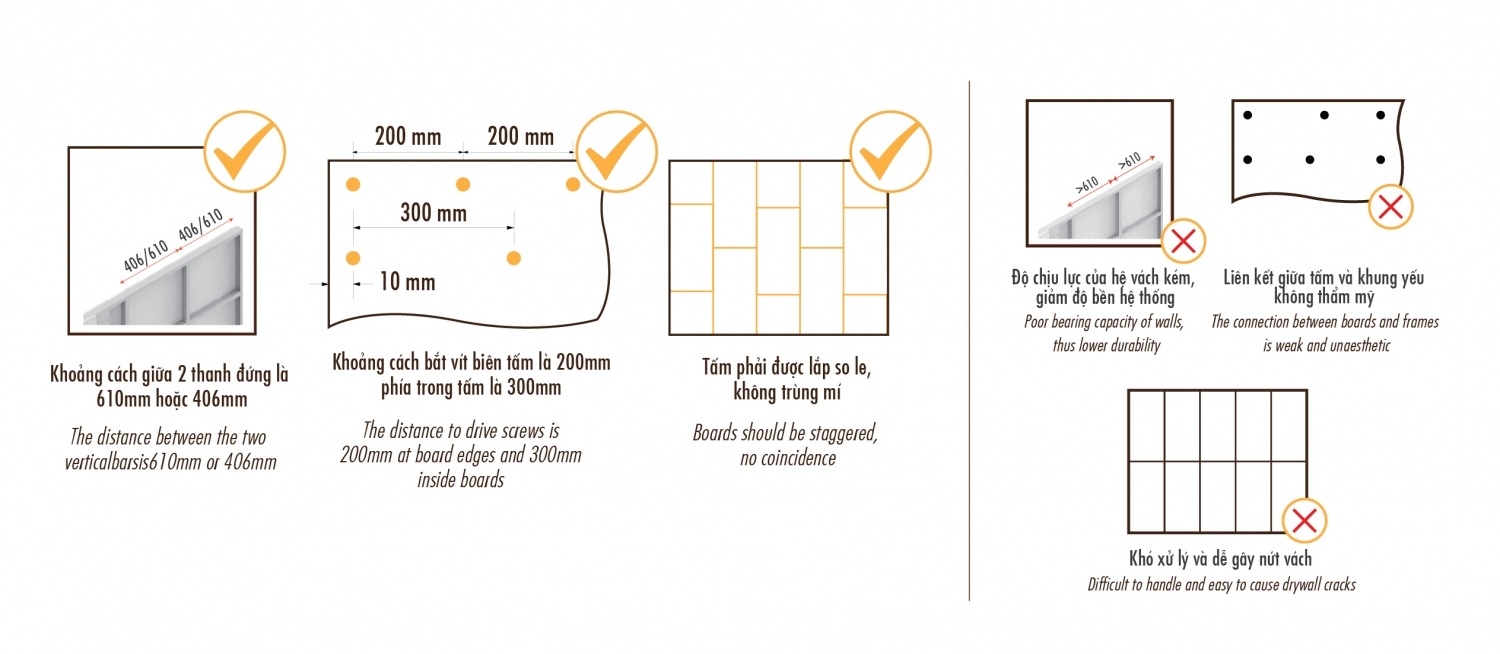

Key Points for Gypsum Ceiling Installation to Ensure Construction Quality
