TEKO U4000-32 Concealed Ceiling Frame System
The TEKO U4000-32 gypsum ceiling frame, developed by Hiệp Vĩnh Phú Joint Stock Company, consists of main and cross runners connected by locking clips. It meets high technical standards, ensuring safety for both the building and its users.
The TEKO U4000-32 frame system and accessories are manufactured using materials supplied by leading global steel corporations. Products are coated with aluminum-zinc alloy or pre-painted finish, and comply with the following quality standards: AS 1397, JIS G3302, JIS G3321, ASTM A792M, TCVN 7470.
Suitable for both interior and exterior ceilings.
The TEKO U4000-32 concealed ceiling system includes the following components:
| Name | Length (mm) | Thickness (mm) |

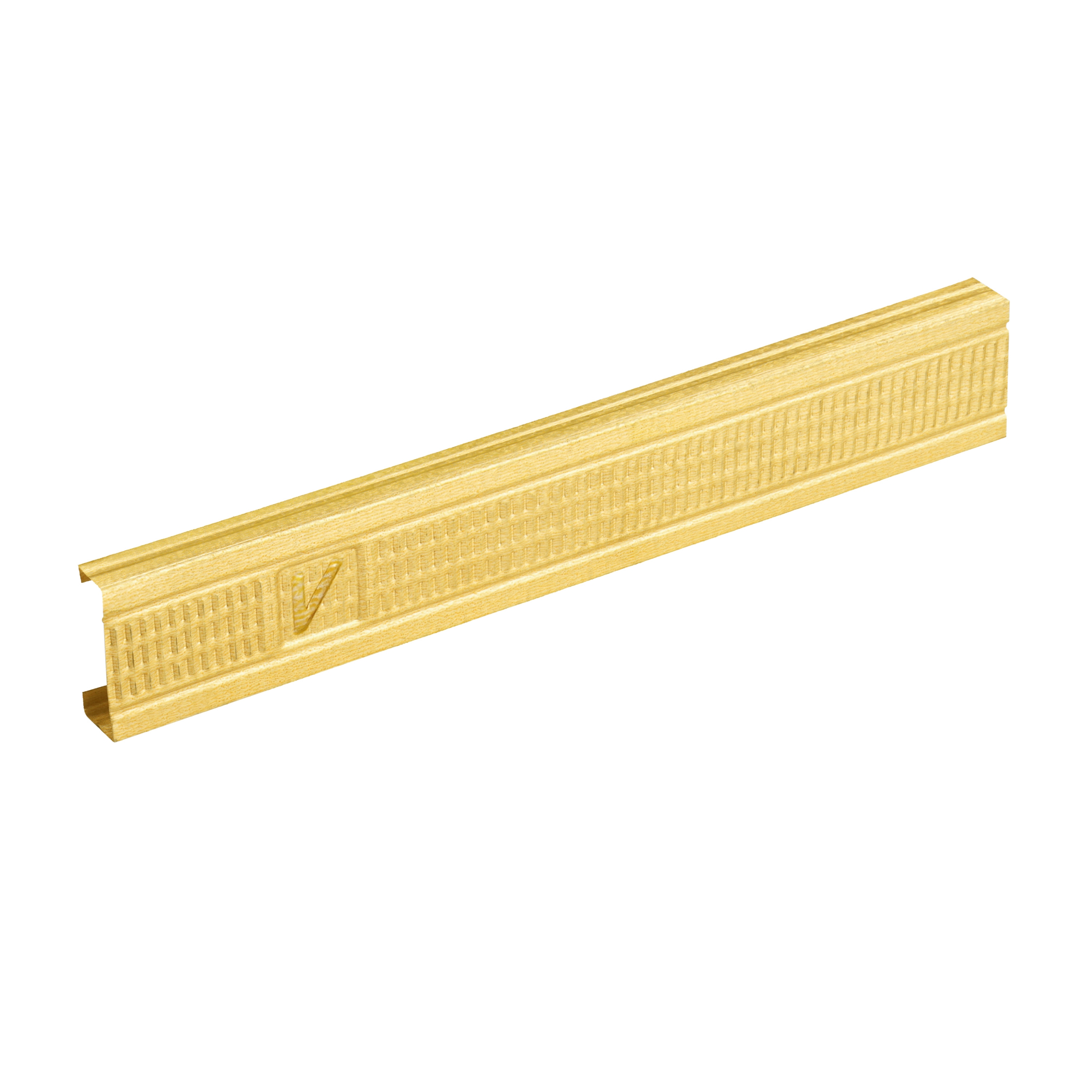

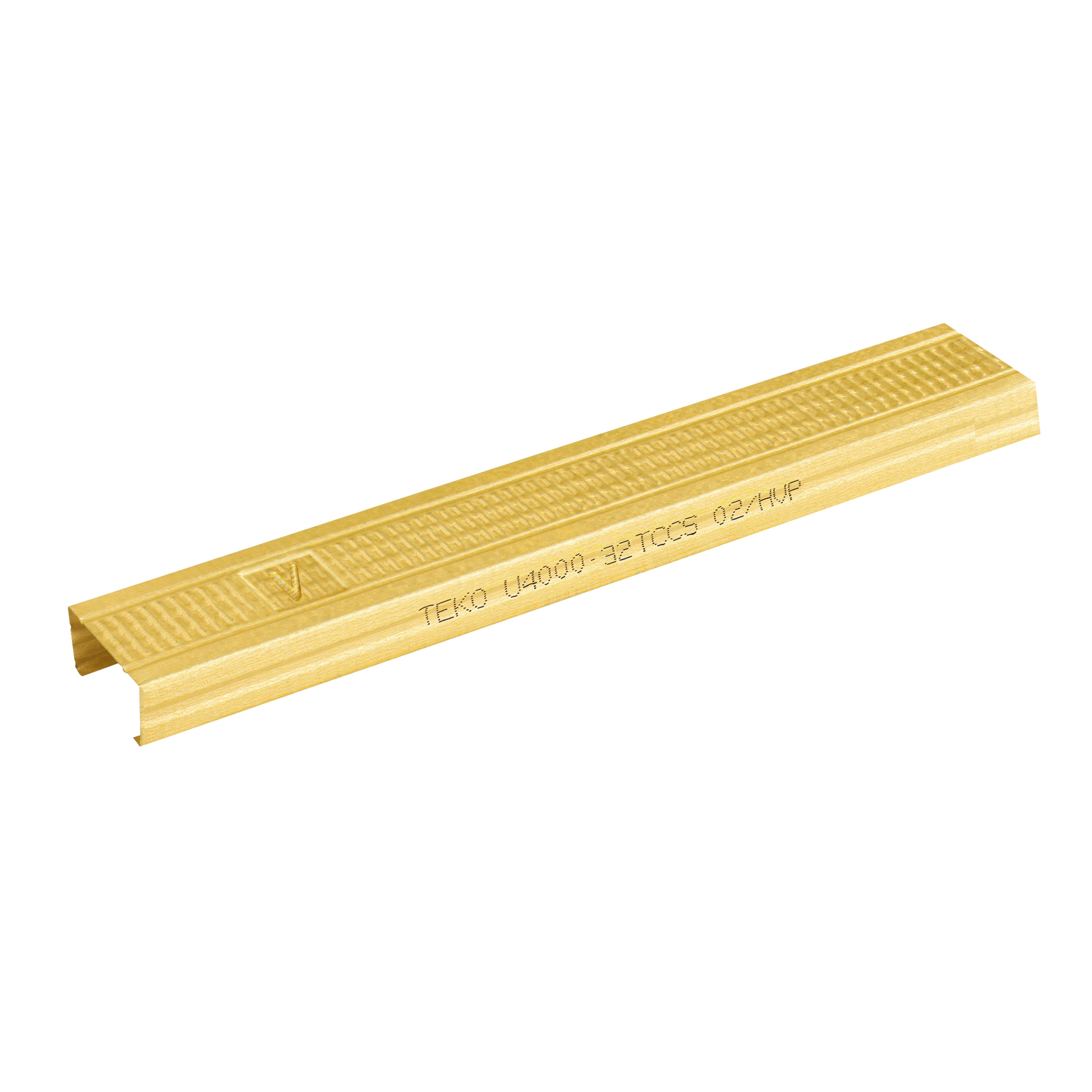

| Main T TEKO U4000-32 | 4000 ± 0.5 | 0.32 ± 0.02 |
| Cross T TEKO U4000-32 | 4000 ± 0.5 | 0.32 ± 0.02 |

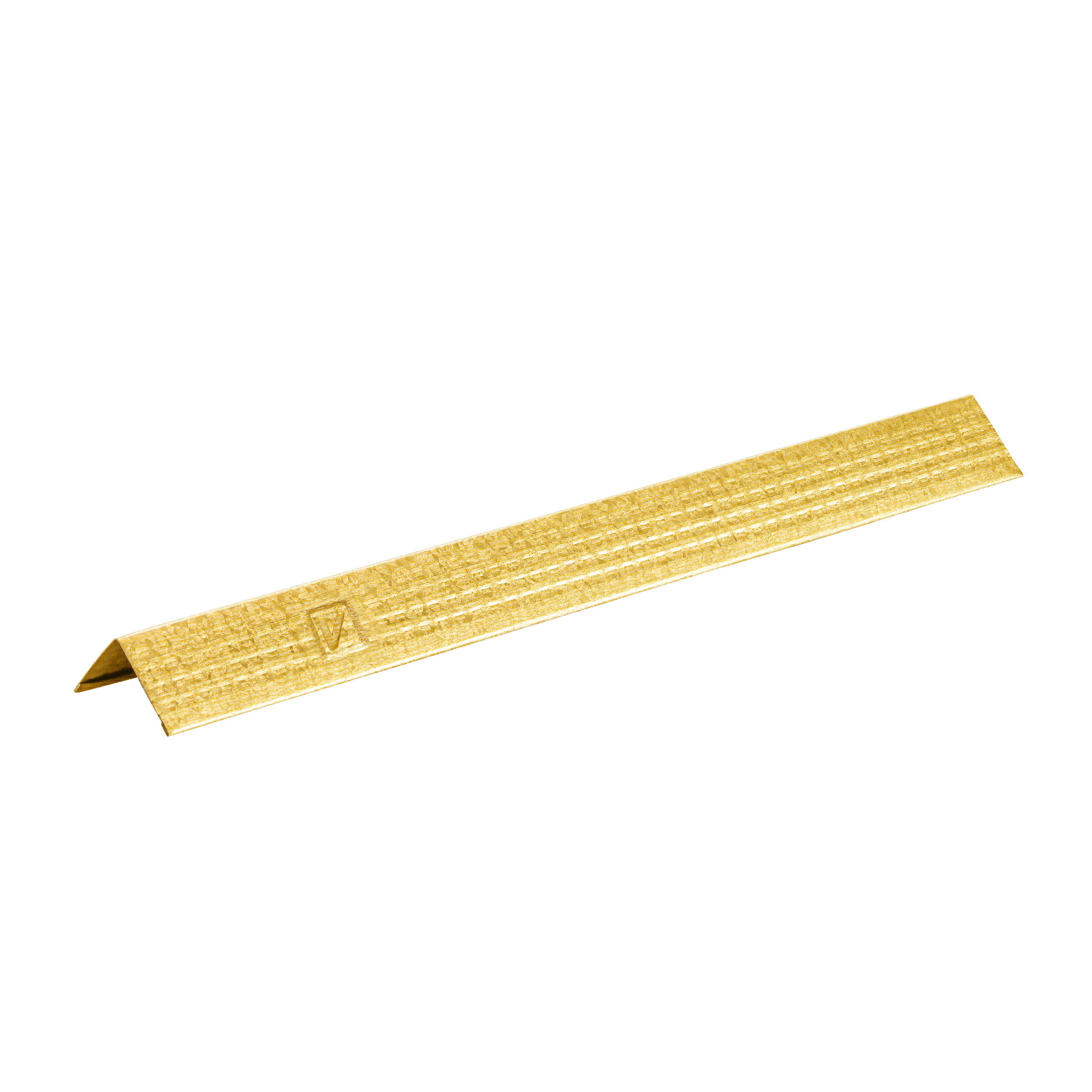

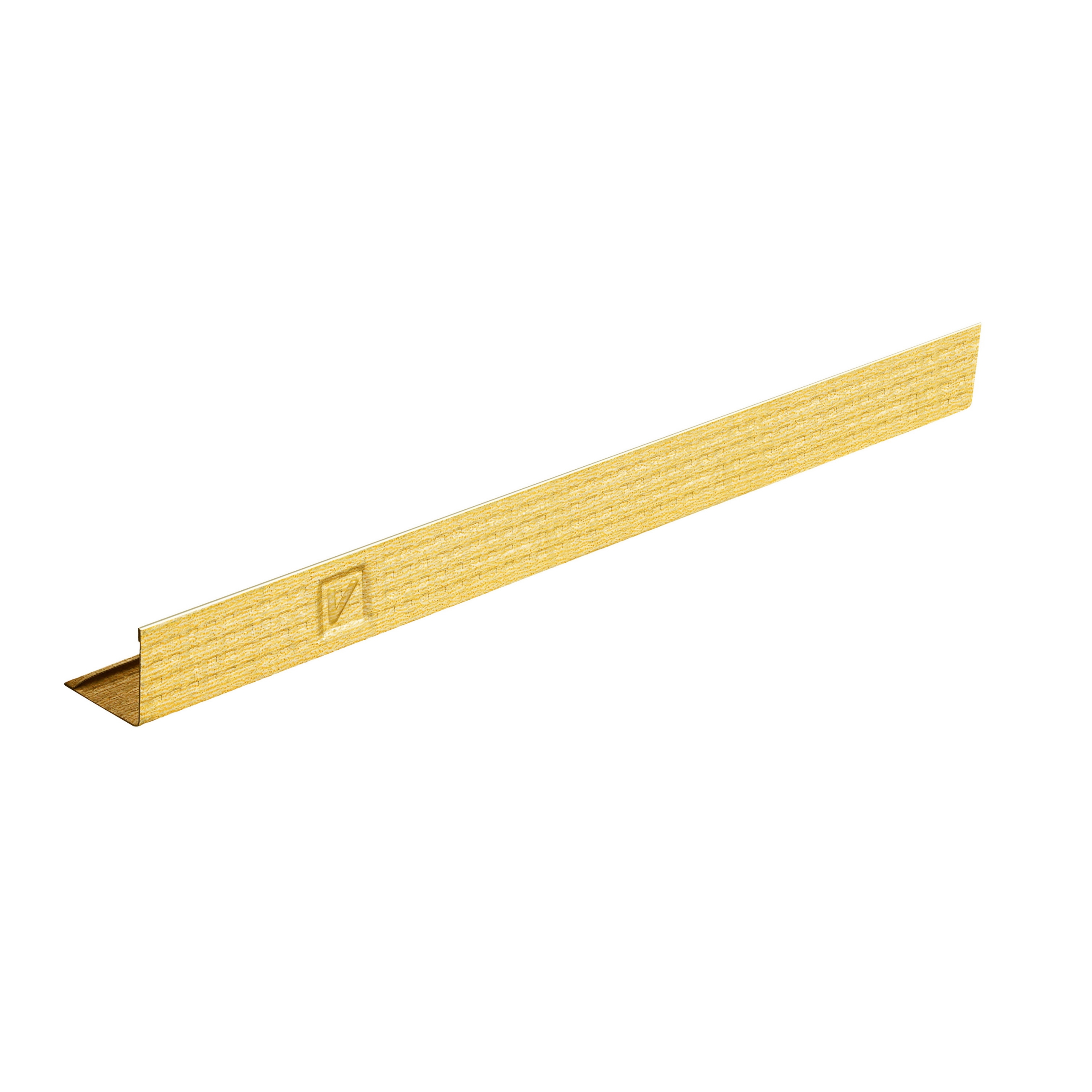

| Wall Angle TEKO V4000-32 | 4000 ± 0.5 | 0.32 ± 0.02 |

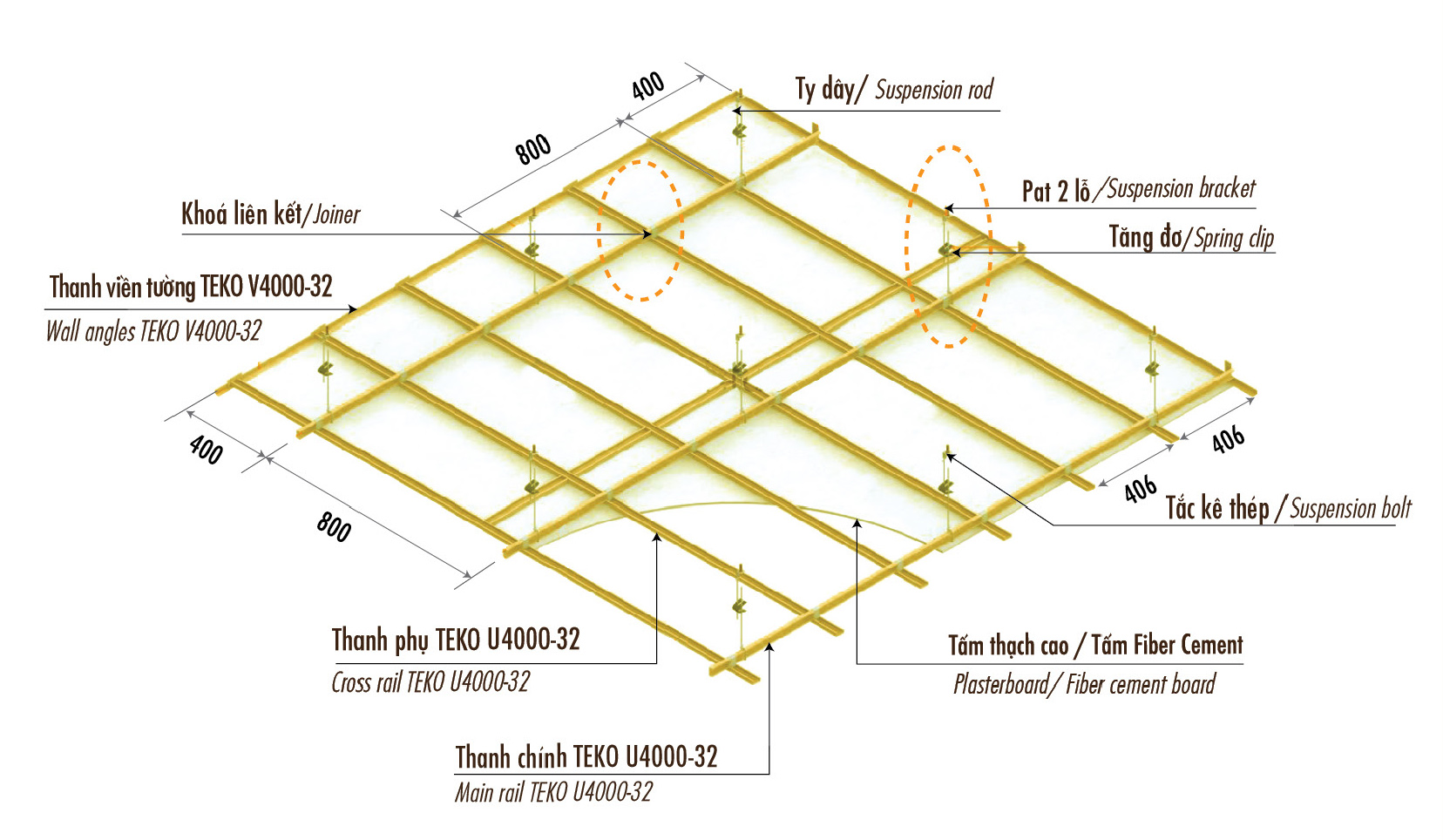

Ceiling System Composition

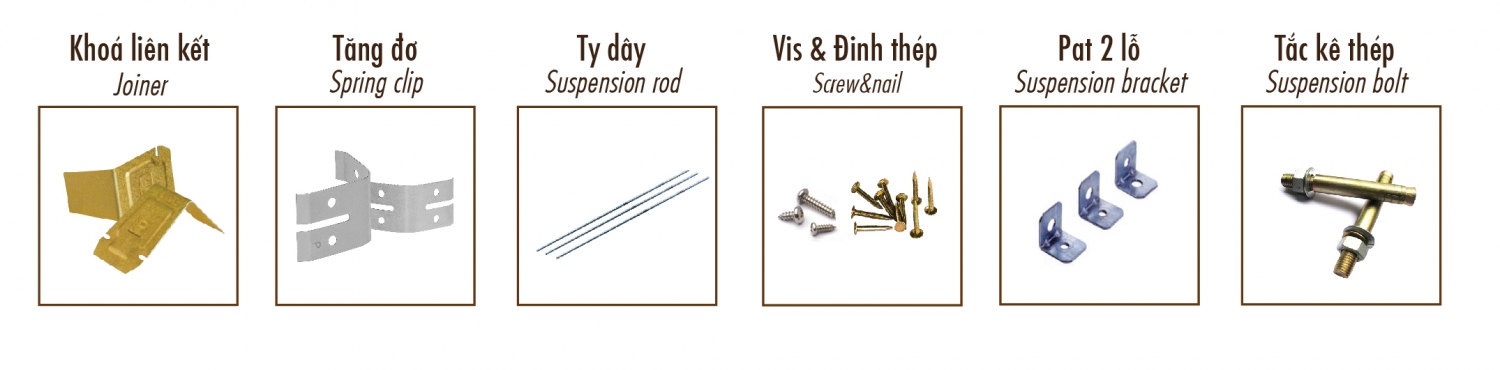

Accessories

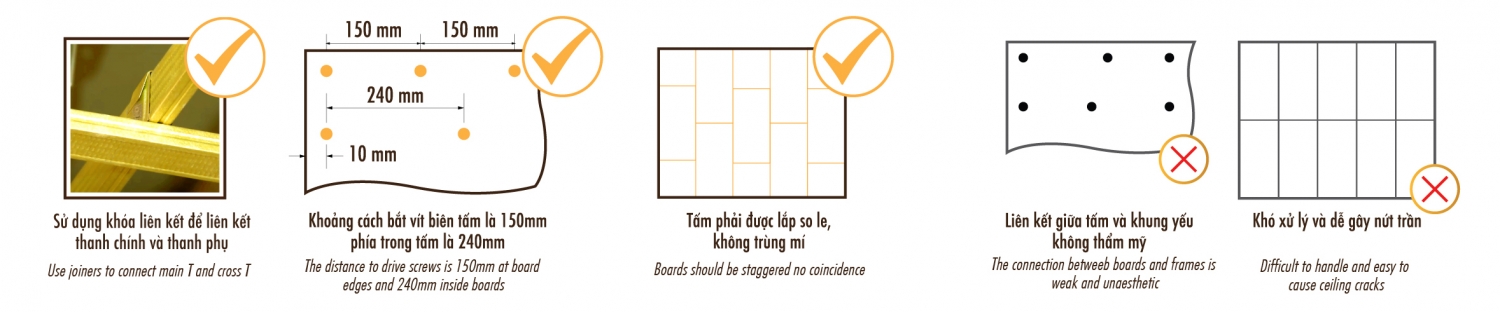

Key Points for Gypsum Ceiling Installation to Ensure Construction Quality
